Stemco 392-9112 Grit Guard Wheel Seal Set for 44K Mack Drive Axles, 315-1515 Axle Ring,320-2213 Seal
Part Number:740-3929112
Product Details
- Special Notes
- Use the 309-0904 Stemco Guardian seal if the truck has ABS brakes

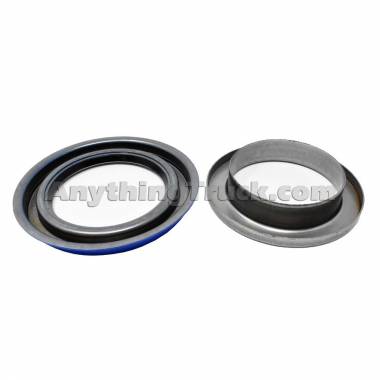

- See the 392-9130 Stemco Grit Guard seal if the truck has HM516449A bearings
- Product Description
- Stemco wheel seal set
- Stemco Part Number: 392-9112
- One seal and one Grit Guard axle ring for servicing one wheel
- For use in Mack 44,000 pound drive axle wheels
- Includes one 315-1515 axle ring and one 320-2213 wheel seal
Grit Guard Axle Ring Dimensions:
| Part Number | For Shoulder O.D. | Seal Area O.D. | Width | Flange O.D. | Flange Width |
|---|---|---|---|---|---|
| 315-1515 | 4.250" | 4.369" | 0.937" | 6.000" | 0.470" |
Oil Seal Dimensions:
| Part Number | For Bore Diameter | Width | Axle Ring O.D. +/- 0.01 |
|---|---|---|---|
| 320-2213 | 6.251" | 0.562" | 4.377" |
Found in applications with the following bearing combinations:
| Inner Bearing Cup/Cone | Outer Bearing Cup/Cone | Universal Axle Tool Head | Universal Hub Tool Head |
|---|---|---|---|
| 652/663 HM516410/HM516449,-C | 572/575 47620/47679 | 555-5072 | 551-5364 |
Cross References: Stemco 309-0904, Stemco 393-0104, Stemco 393-0204, Mack 32QJ271, National 370031A, National 380031A, Trailmobile 4131197, Trailmobile 4131225, Trailmobile 4131229, National 415058, CR 42644, CR 42650, CR 42671, CR 42672, CR 42673, National 455058, Victor 48098, Triseal 65071U, Triseal 65071W, Triseal 69788, Triseal 70788, NOK 852, Mack 88AX405, MAck 88AX418, Mack 88AX448, Mack 88AX466, Mechanex/Barrier HS42671, Victor SS64567, and Eaton Z1026T
A cross reference listing means that this seal is a suitable replacement for the part numbers listed. Please compare the seal details to your seal to be sure this is correct.
The product shown above may not accurately depict the actual product.
