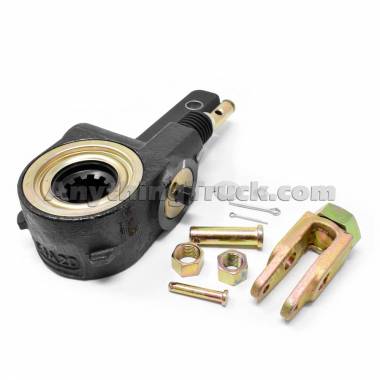

Gunite AS1136 Automatic Slack Adjuster - 1.25" 10 Spline, 5.5" Span

Product Details

Special Notes

none

Product Description

Genuine Gunite Automatic Slack Adjuster

Clearance Sensing Adjuster - Adjusts brake automatically based on clearance between the brake drum and brake lining

Fits 1.25" - 10 spline camshaft

5.5" Arm Length (Span)

Straight slack adjuster, No offset

Includes one slack adjuster with pre-installed clevis, installation instructions, and an installation template

Gunite Slack Adjusters provide consistent brake adjustment minimizing problems with DOT roadside inspections. Gunite Slack adjusters maintain consistent shoe-to-drum clearance which will help maximize lining life. This reduces the amount of time spent annually on brake relining.

Gunite�s unique design adjusts on the applied stroke, accurately reading the shoe-to-drum clearance when the brake drums are coolest and deflection of the brake system components are minimal. Combine this fact with Gunite�s unique clearance sensing design and exclusive two-way adjustment and you have a slack adjuster that provides the most consistent shoe-to-drum clearance under all conditions. The result is consistent brake adjustment, and optimum brake performance, which increases profits through less downtime and lower operating costs.

Cross References: R801001, R801004, R801005, R801006, R802020, R802023, R802030, R802031, R802032, R802033, R802040, R802041, R802042, R802043, A113275N768S, A113275H1152S, A43275N768S, CS56013, 9628R801001, TDAR801001, CS56036, NAR801001, 05570, AS1036, AS1136, 101453, 101454, 101539, 101540, 106197, 106198, 106203, 106206, 106208, 106209, 107104, 107107, 107113, 107114, 107116, 107117, 107177, 107263, 289304, 289305, 289306, 289307, 65163, 65164, CB24000, CB24100, CB24300, 974296, 52513, 808121, 808122, 808123, 808689, 808690, 808693, 808695, 809774, 809775, 810729, 812642, 815795, 815796, 815797, 815814, 815815, 815816, 974296, E128K, E325K, E6900, E6901, E6906, E6907, E6987, E6988, 6814205538, 6814205539, AS1005, AS1036, SA00804, SA02203, SA02701, SA06602, SA08702, SA10002, SA11402, SAS1051, SAS1136, 40010001, 40010013, 40010072, 40910114, 40910115, 40910128, 40910163, 40910172, 40910224, 40910249, 40910250, 40910255, 40910325, 40910326, 40910388, 40910391, 40910495, CS56036, CS56013, KN48031, KN52250, KN52251, KN52252, KN52253, KN52254, 0201736, 0202245, 0305136
A cross reference listing means that this slack adjuster is a suitable replacement for the part numbers listed. There may be some differences in look and installation.
