Basic Tractor Protection System Kit for Trucks with a PP-DC Dash Valve, Adding Trailer Air Brakes
Part Number:322-MV3TPKIT
Product Details
Adding trailer air brakes to a truck with a PP-DC dash valve

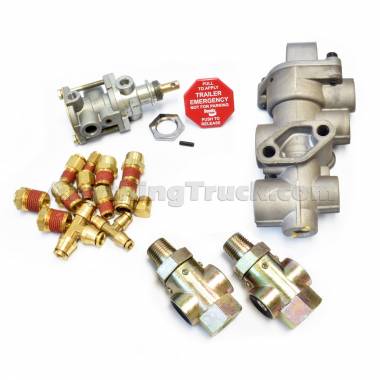

We've created this kit for people with an air brake straight truck that needs to be converted to a tractor. Your truck should have a PP-DC style dash valve in order to use this kit. You can tell if you have a PP-DC dash valve checking to see how the button attaches to the valve shaft. The PP-DC has a plastic shaft, and the button threads onto it. See our PP7TP kits if your truck has a PP-1 style dash valve.
You will need to replace the existing PP-DC dash valve with a MV-3 valve which has yellow and red buttons in
one unit. We don't include the MV-3 in this kit because there are many different configurations available.

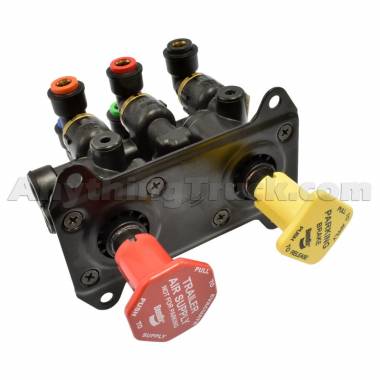

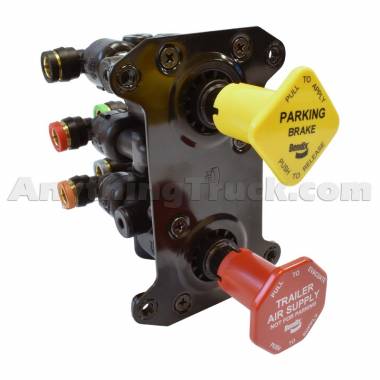

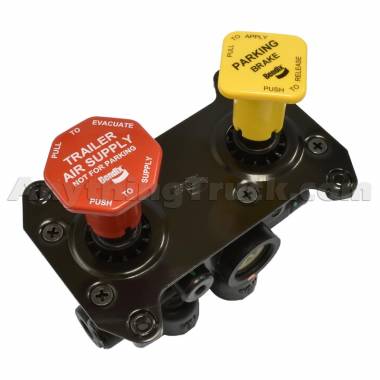

The differences are in the mounting plates, mounting holes, and the ports. Popular MV-3 valves are listed below.
Contact customer service if you need help determining which MV-3 to order. We will ask for the part number off of

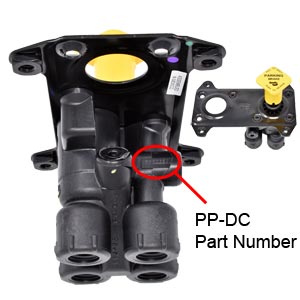

your PP-DC. See the picture below for an example of where you might find the part number.
Gladhands and trailer connection hoses are sold separately because there are many options to choose from. Popular choices are listed below.
Easy Installation
Our tractor protection system kits have been designed to allow for the easiest installation possible and include comprehensive instructions. You'll also have access to our unmatched expert tech support during installation!
- Special Notes
- none
- Product Description
- Manufacturer: AnythingTruck.com
- Part Number: MV3TPKIT
- Use this kit for adding trailer brakes when converting a straight truck or dump truck to a tractor
- This kit is meant for trucks with an existing PP-DC style dash valve
- Includes a tractor protection valve, inline quick release valves, nylon air tubing, push-to-connect fittings, zip ties, and instructions
- MV-3 dash valve sold separately
Cross References: MV3TPKIT, 322-MV3TPKIT
A cross reference listing means that this item should be a suitable replacement
for the part numbers listed. You should check the description to be sure it will work in your application.
