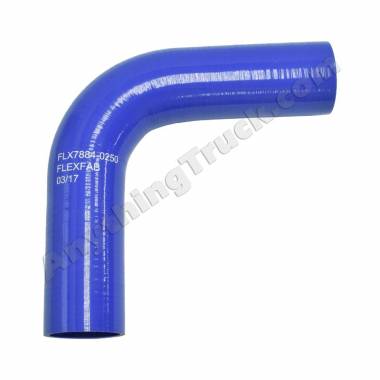

FlexFab 7884-250 90 Degree Silicone Coolant Elbow, 2.5" ID, 6.5" Legs

Product Details

FlexFab 7884 series elbows can be used as a coolant hose or charge air connector (CAC). With 3-plies of Meta-Aramid Reinforcement, this hose meets or exceeds the operating requirements of SAE J20 R1 Class A and TMC RP303B Class I Grade II.

Use this hose for heavy duty pressure connections in hostile engine environments. It will resist hardening, cracking, cold leaks, aging, and many chemicals. It's ideal for extreme temperature and pressure variations.

Special Notes

none

Product Description

Manufacturer: FlexFab

Part Number: 7884-250

90° Silicone Coolant Elbow

Inside Diameter: 2.50"

Outside Diameter: 2.82"

Leg Length: 6.50" (Available Clamp Space)

Bend Radius: 3.75"

Burst Pressure: 150 PSI (SAE J20 R1)

Burst Pressure: 100 PSI (TMC)

Temperature Range: -65°F (-54°C) to +500°F (+260°C)

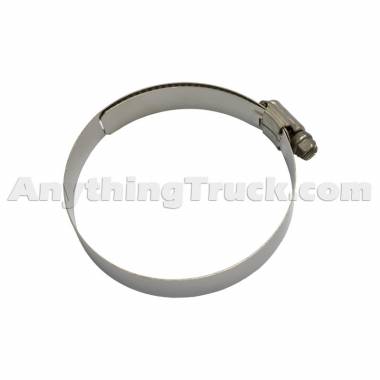

Use clamp 2582-040 or 2584-0312

Cross References: 7884-250, 7884250, 292-7884250
A cross reference listing means that this item should be a suitable replacement for the part numbers listed. You should check the description to be sure it will work in your application.
