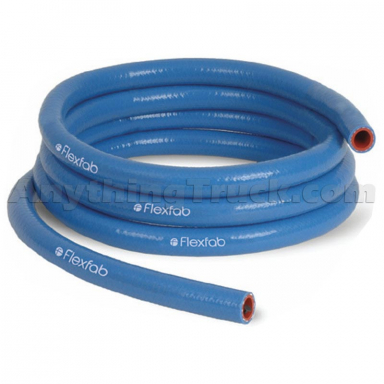

FlexFab 5526-075 3/4" Silicone Heater Hose, Sold by the Foot Part Number: 292-5526075

Not Yet Rated | Write the First Review

FlexFab 5526 series silicone heater hose is sold by the foot. Buy the 250' roll, and you'll receive a bulk discount.
FlexFab does not guarantee continuous lengths on their rolls, so we cannot guarantee continuous lengths on longer orders.

With 1-ply of reinforcement, this hose meets or exceeds the operating requirements of SAE J20 R3 Class A and TMC RP303B Class I Grade II.

Special Notes

none

Product Description

Manufacturer: FlexFab

Part Number: 5526-075

Silicone Heater Hose

Inside Diameter: 0.75"

Outside Diameter: 1.08"

Wall Thickness: 0.14/0.17"

Minimum Bend Radius: 3.75"

Actual Burst Pressure: 300 PSI

Burst Pressure: 200 PSI (SAE J20 R3)

Burst Pressure: 125 PSI (TMC)

Temperature Range: -65°F (-54°C) to +350°F (+177°C)

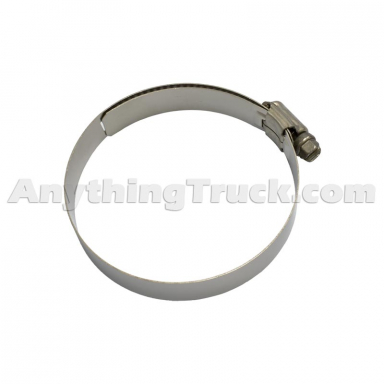

Use clamp 2582-0010

Cross References: 5526-075, 5526075, 292-5526075, 5526-075x25, 5526-075x50, 5526-075x250, 5526-075x300
A cross reference listing means that this item should be a suitable replacement for the part numbers listed. You should check the description to be sure it will work in your application.
