888050 Air Bag, Replaces Hendrickson S-4771, Watson & Chalin AS-0039 & Firestone W01-358-8050

Product Details

Special Notes

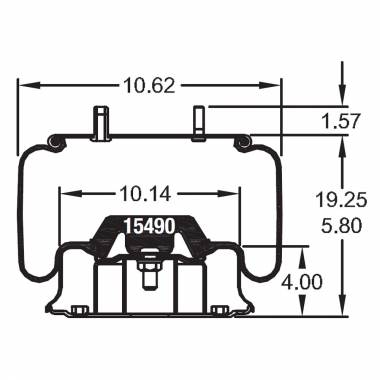

We stock 3 air bags that use this rubber bellows: 280-8050, 280-8052, and 280-8053. All have two mounting studs on the top plate. If your air bag has 4 mounting studs, we would have to special order it.

Product Description

Manufacturer: Spring Pro

Spring Pro Bellows Number: 888050

Goodyear Bellows Number: 566-28-3-015

Goodyear Part Number: 1R14-039

Firestone Bellows Number: 1T19ZK-5.7

Firestone Part Number: W01-358-8050

Supersedes Firestone Bellows Number: 1T19J-6

Replaces: Hendrickson Trailer S4771, Hendrickson Can. B-12541-013, Tuthill-Reyco 23631-01 and Watson & Chalin AS-0039

Cross References: 8050, E1R14039, 1R14039, 1T19J6, 8320, 566283023, 1R14039, 1R14-039, B-4771, 36514-13, 1685174C1, 236631-01, 8320, SC2052, 64254, 11 10.5C-16 A 320, 1110.5C-16A320, 1110.5C16A320, W01-358-8050, W013588050, AS80500
A cross reference listing means that this air bag may be a suitable replacement for the part numbers listed. Please double check the dimensions and location of mounting holes and stud to be sure the air bag will work in your application.
