Dexter 008-430-03 Hub for 9K, 10K, & 13G Trailer Axles, 8 on 6.5", After July 2009

Product Details

This hub was used introduced in May of 2013 to supercede Dexter one-piece hub and drum part numbers 008-415-02 and 008-415-04. Axles built by Dexter after July 2009 had a closer bearing spacing, and Dexter went to a one-piece hub & drum combination that was not compatible with the previous design. In May of 2013, Dexter discontinued that one-piece hub & drum combination and went to a two-piece design with the same, newer bearing spacing.

The one-piece hub and drum part numbers are no longer available, so they must be replaced with this 008-430-03 hub and the 009-123-03 drum. See the Related Parts tab for the brake drum.

Special Notes

Fits axles built after July 2009

Product Description

Manufacturer: Dexter Axle

Dexter Part Number: 008-430-03

Wheel Stud Size: 5/8"-18

No of Wheel Studs: 8

Wheel Stud Bolt Circle: 6.50"

Inner Bearing Cone: 387A (not included)

Inner Bearing Cup: 382A (included)

Outer Bearing Cone: 25580 (not included)

Outer Bearing Cup: 25520 (included)

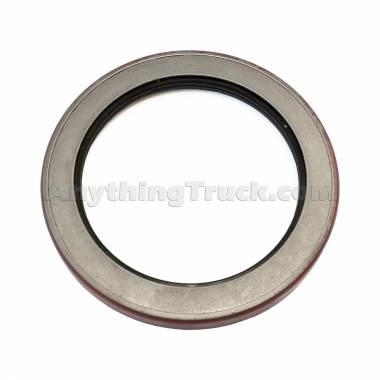

Oil Seal: 220-10511 (not included)

Hub Cap: 220-7174 (not included)

Cross References: 84303, 00843003, 8-430-03
