Haldex MA15665 MAXIBRAKE R-Series Pull Type Spring Brake, 3" Stroke

Part Number:070-MA15665
Not Yet Rated | Write the First Review
$562.87 USD
Haldex MA15665 MAXIBRAKE R-Series Pull Type Spring Brake, 3" Stroke
Processing...
Qty in Stock: Out of Stock
Add'l Qty (1-4 days): 1
Quantity in Stock reflects available inventory as of 5:00 AM CST.

Product Details


There a two maxibrake actuators used as tailgate cylinders on East trailers. This MA15665 which has an 8" push rod with a 5" exposed length.

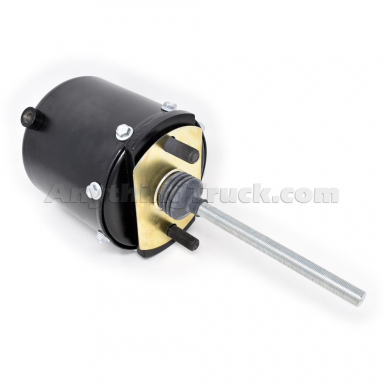

The other option is the KSMR3PT75-1200NB. It's listed as 12" long, but the exposed push rod length is 9". You can find it at the bottom of this page.

Special Notes
none
Product Description
Manufacturer: Haldex
Part Number: MA15665
Condition: New
MaxiBrake
Stroke: 3"
Spring: 75 lbs.
Push Rod Length: 8" (5" exposed)
Maximum Air Pressure: 125 PSI

Cross References: MA15665, 070-MA15665, KSMR3PT75-800NN, KSMR3PT75800NN, HDXMA15665, 767653016801, MIDMA15665, CMA15665
A cross reference listing means that this item should be a suitable replacement for the part numbers listed. You should check the description to be sure it will work in your application.
