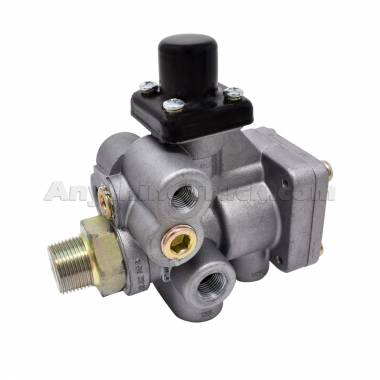

Bendix K033214 SR-2 Spring Brake Valve, Replaces Obsolete PN 287376
Part Number:060-K033214![Bendix K033214 SR-2 Spring Brake Valve, Replaces Obsolete PN 287376 Bendix K033214 SR-2 Spring Brake Valve, Replaces Obsolete PN 287376](graphics/en-US/cssui/blank.gif)
![Processing... Processing...](themes/ironwool/images/img_ajax_processing.gif)
Product Details
- Special Notes
- none
- Product Description
- Manufacturer: Bendix
- Part Number: K033214
- Condition: New
- SR-2 Spring Brake Valve
- Reservoir Nipple: 3/4" NPT
- Does NOT have trailer service port for anti-compounding
- Spring Brake Reservoir Supply Port: 3/4" NPT (without Check Valve)
- Trailer Supply Port: 1/4" NPT
- Service Reservoir Port 1: 1/4" NPT
- Service Reservoir Port 2: 1/4" NPT
- Delivery Ports: 3/8" NPT
- Brake Charging Priority: Service Brake Priority
- Opening Pressure: 65 PSI
- Anti-Compounding: No
The SR-2 and SR-4 spring brake valves are designed for use in trailer air brake system. The SR-2 differs from the SR-4 in that it uses a dedicated spring brake reservoir for release of the trailer spring brakes while the SR-4 utilizes the service reservoirs for this purpose. Mounted on one of the trailer reservoirs, these valves control both the parking and the emergency brake functions of the spring brakes and using integral pressure protection and check valves they isolate reservoir failures preventing automatic application of the trailer spring brakes. An integral anti-compound feature is part of both valves.
Cross References: K033214, 060-K033214, K033047, GN287376, 322-GN287376, 287376, 287376R, 288497, 287375, BKA287,
1970061021, 9010888, 1191847, 111707, 12361, KN26000, 6300287375, 401183, 51301, 51321, EBN287376X,
270-EBN287376X, EBN287376N, 270-EBN287376N, R955287376, 650-R955287376, R955287376N, 650-R955287376N,
287376RX, 070-287376RX, KO33214, 060-KO33214
A cross reference listing means that this item should be a suitable replacement
for the part numbers listed. You should check the description to be sure it will work in your application.
