Bendix 286370N R-8 Relay Valve (Special Order)

Product Details

This is a special order item with an estimated lead time of 7-10 days before it ships, and we'll contact you with a verified lead time after you place an order.

Please call, email, or chat for a definite lead time if you're in a hurry.

Special Notes

none

Product Description

Manufacturer: Bendix

Part Number: 286370N

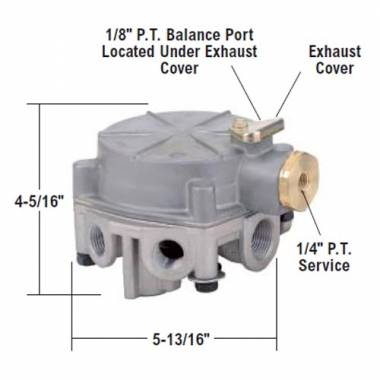

R-8 Relay Valve

Condition: New

Service Port Location: 90° from mounting flange

Includes exhaust cover

Crack Pressure: 3 psi

Relay valves are primarily used on long wheelbase vehicles to apply and release rear axle(s) service or parking brakes. They are air operated, graduating control valves of high capacity and fast response. Upon signal pressure from the service brake valve, they graduate, hold or release air pressure from the chambers to which they are connected. They are generally mounted close to the chambers they serve. Relay valves are available in both remote and reservoir mount designs and feature inlet/exhaust valve cartridge replacement without line removal.

The R-8 relay valve incorporates an integral double check valve with a balance port connection which provides both an anti-compounding or quick exhaust feature depending upon vehicle application. The anti-compound feature is used when these valves are used to control spring actuated parking features.

Cross References: 286370, 286370R, 286371, 286371X, 287277, 287277X, RKN28071, 22A2696, 825735, 10130548, 9069725, KN28071, 763353, AE763353, 936750, 1676729C1, 666969C91, 90001269, 90002279, S9174, 110412, 110416, 24693, 36U94D1, 4017724, 034024, 1092945, 1690499, 79105006
A cross reference listing means that this item should be a suitable replacement for the part numbers listed. You should check the description to be sure it will work in your application.
