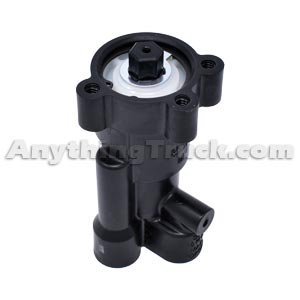

Bendix 101860 TC-7 Trailer Brake Control Valve, Positioning

Product Details

Special Notes

none

Product Description

Manufacturer: Bendix

Part Number 101860

Condition: New

Hand Brake Control Valve

Ports: 1/4" NPT

Basic Valve 0nly, Handle and mounting bracket sold separately

Positioning Valve, does NOT self-return

Final delivery Pressure: Full Reservoir Pressure

Trailer control (TC) valves are hand operated, graduating control valves. The most common use of the trailer control valve is for independent control of trailer service brakes, however, the valve can be used for any application where graduated application pressure is required.

These valves employ a cam, cam follower, and a graduation spring to control air delivery pressure and are available in various body, handle, and clamp configurations. Some models are available with self-returning handles. Trailer control valves are most often used to snub the trailer brakes when descending grades or on slippery road conditions. They are also often used to hold the vehicle while the vehicle's clutch and accelerator are coordinated. The trailer control valve should never be used for parking.

Cross References: 101860, 060-101860, 102707, 104997, 106127, 106221, 107426, 108089, 109389, 109798, 2029137C91, K020531, 101910, 102388, 106127, 106227, 109260, 5001958, BW 101860, BW101860, KN20541, 745-101860, 745101860, 745102338, 745-102388, RKN20541, TWDBEN101860, BEN101860, 1620284C91, 2020962C91, 594574C91, 598450C92, BAN101860, BX101860, ZAC101860, 101860BXW, 321575, 3949439, 766010007
A cross reference listing means that this item should be a suitable replacement for the part numbers listed. You should check the description to be sure it will work in your application.
