Dexter 7200 lbs. One-Piece Hub & Drum
8 Studs on 6.50" Bolt Circle
865 Hub Group
| Key No. | Part Number | Description | No. Required Per Wheel | Dexter Number | Remarks |
|---|---|---|---|---|---|
| 1 | 220-1054 | Grease Seal | 1 | 010-054-00 | |
| 220-1063 | Oil Seal | 1 | 010-063-00 | ||
| 2 | 760-25580 | Inner Bearing Cone | 1 | 031-030-02 | |
| 3 | 760-25520 | Inner Bearing Cup | 1 | 031-030-01 | |
| 4 | 760-02420 | Outer Bearing Cup | 1 | 031-028-01 | |
| 5 | 760-02475 | Outer Bearing Cone | 1 | 031-028-02 | |
| 6 | 220-6176 | Axle Nut | 1 | 006-176-00 | |
| 7 | 220-192 | Cotter Pin | 1 | 019-002-00 | |
| 8 | 220-2139 | Grease Cap | 1 | 021-039-00 | |
| 8A | 220-21431 | E-Z Lube Grease Cap | 1 | 021-043-01 | |
| 8B | 220-851 | Plug for E-Z Lube Grease Cap | 1 | 085-001-00 | |
| 8C | 220-7138 | Screw-On Oil Cap | 1 | K71038 021-035-00 | Includes O-ring and plug |
| 8D | 220-4632 | Plug for oil Cap | 1 | 046-032-00 | |
| 9 | 005-057-00 | Spindle Washer | 1 | 005-057-00 | |
| 10 | 220-7122 | 1/2"-20 Wheel Stud | 8 | 007-122-00 | |
| 9/16"-18 Wheel Stud | 8 | 007-223-00 | |||
| 5/8"-18 Wheel Stud | 8 | 007-224-00 | |||
| 12 | 130-M236 | 9/16"-18 60° Cone Nut | 8 | 006-053-00 | |
| 130-M248 | 5/8"-18 90° Cone Nut | 8 | 006-109-00 | ||
| 16 | 220-1045 | O-Ring for Oil Cap | 1 | 010-045-00 | Included with oil cap assembly |
| 17 | 036-118-20 | Dust Shield | 1 | 036-118-20 | After 05/2000 with cast backing plate brakes |
| 20 | 220-23428 | LH Electric Brake Assy | 1 | K23-428-00 | After 05/2000, 12-1/4"x2-1/2", 4-Bolt, cast iron backing plate |
| 220-23429 | RH Electric Brake Assy | 1 | K23-429-00 | After 05/2000, 12-1/4"x2-1/2", 4-Bolt, cast iron backing plate | |

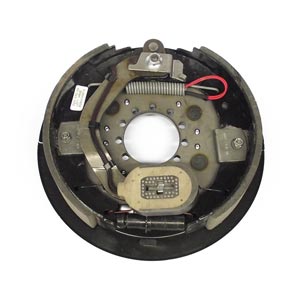

| 220-23370 | LH Electric Brake Assy | 1 | K23-370-00 | Before 05/2000, 12-1/4"x2-1/2", 4-Bolt, Stamped steel backing plate | |

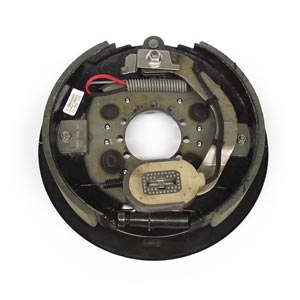

| 220-23369 | RH Electric Brake Assy | 1 | K23-369-00 | Before 05/2000, 12-1/4"x2-1/2", 4-Bolt, Stamped steel backing plate | |
| 24 | Hub/Drum Assembly | 1 | 008-393-10 | Grease, 1/2" Studs, 8 on 6.50", includes bearing cups | |
| Hub/Drum Assembly | 1 | 008-393-04 | Grease, 9/16" Studs, 8 on 6.50", includes bearing cups | ||
| Hub/Drum Assembly | 1 | 008-393-06 | Grease, 5/8" Studs, 8 on 6.50", includes bearing cups | ||
| Hub/Drum Assembly | 1 | 008-393-09 | Oil, 1/2" Studs, 8 on 6.50", includes bearing cups | ||
| Hub/Drum Assembly | 1 | 008-393-03 | Oil, 9/16" Studs, 8 on 6.50", includes bearing cups | ||
| Hub/Drum Assembly | 1 | 008-393-05 | Oil, 5/8" Studs, 8 on 6.50", includes bearing cups | ||
| 28 | 220-6191 | Axle Nut for E-Z Lube | 1 | 006-191-00 | (after 2002) |
| 29 | 220-6190 | Retainer for E-Z Lube Axle Nut | 1 | 006-190-00 | (after 2002) |
