Dexter 3600 - 6000 lbs.Capacity
6 Studs on 5.50" Bolt Circle

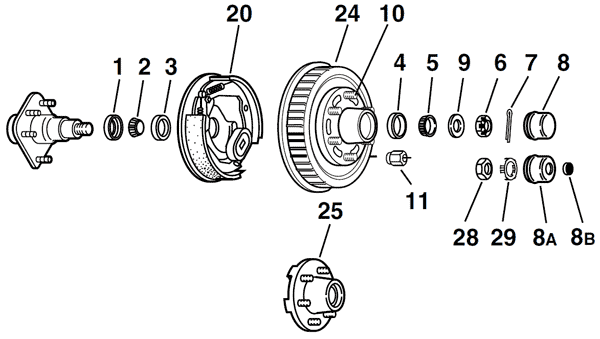

Dexter 3.6K - 6K Capacity Axle Parts Breakdown
Key
No.
Part
Number
Description No.
Required
Per Wheel
Dexter
Number
Remarks
1 220-1054 Grease Seal, 2.250" ID 1 010-054-00
220-1010 Grease Seal, 2.125" ID 1 010-010-00

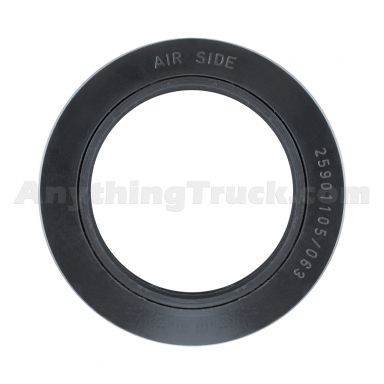

220-1063 Oil Seal 1 010-063-00
2 760-25580 Inner Bearing Cone 1 031-030-02
3 760-25520 Inner Bearing Cup 1 031-030-01
4 760-LM67010 Outer Bearing Cup 1 031-032-01 5200 lbs. axles
760-15245 Outer Bearing Cup 1 031-029-01 6000 lbs. axles
5 760-LM67048 Outer Bearing Cone 1 031-032-02 5200 lbs. axles
760-15123 Outer Bearing Cone 1 031-029-02 6000 lbs. axles

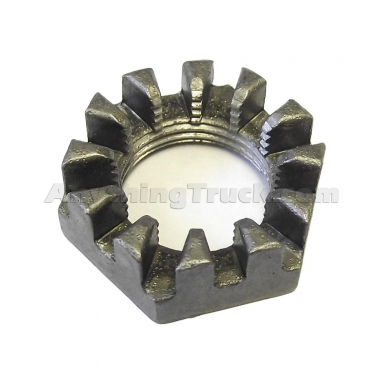

6 220-6176 Axle Nut 1 006-176-00
7 220-192 Cotter Pin 1 019-002-00

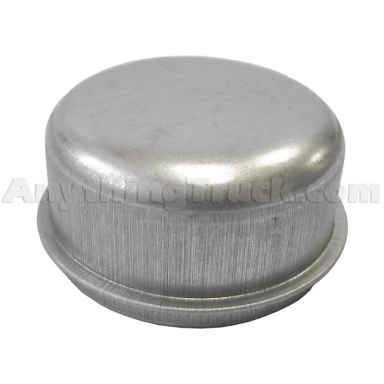

8 220-211 Grease Cap 1 021-001-00

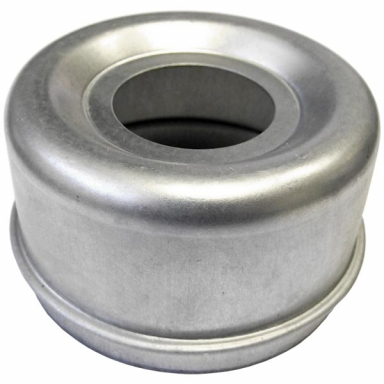

8A 220-21421 E-Z Lube Grease Cap 1 021-042-01 Demountable Hubs
8B 220-851 Plug for E-Z Lube Grease Cap 1 085-001-00
9 220-523 Spindle Washer 1 005-023-00

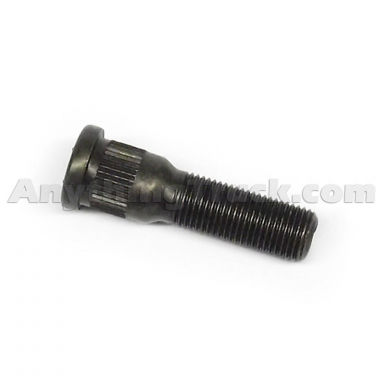

10 220-7122 1/2"-20 x 1.84" L Wheel Stud 6 007-122-00

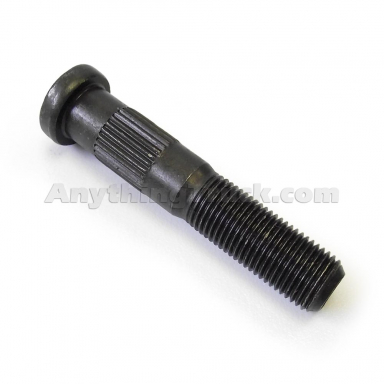

220-7262 1/2"-20 x 2.50" L Wheel Stud 6 007-262-00 Hub/drum after 01/2004
11 130-M203 1/2"-20 60° Cone Nut 6 006-080-00
20 220-23105 LH Electric Brake Assy 1 K23-105-00 6K, 12"x2" manual adjustment
220-23106 RH Electric Brake Assy 1 K23-106-00 6K, 12"x2" manual adjustment
220-23322 LH Hydraulic Brake Assy 1 K23-322-00 Duo-Servo, 12"x2"
220-23323 RH Hydraulic Brake Assy 1 K23-323-00 Duo-Servo, 12"x2"

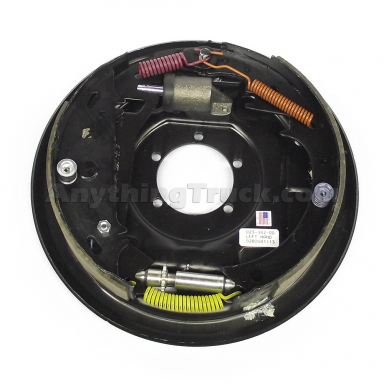

220-23342 LH Hydraulic Brake Assy 1 K23-342-00 Free Backing Uni-Servo, 12"x2"
220-23343 RH Hydraulic Brake Assy 1 K23-343-00 Free Backing Uni-Servo, 12"x2"
24 220-82015 Hub/Drum Assembly 1 008-201-05 5200 lbs. axles, 6 on 5.50", includes bearing cups, Uses LM67048 outer bearing
220-82019 Hub/Drum Assembly 1 008-201-09 6000 lbs. axles, 6 on 5.50", includes bearing cups, Uses 15123 outer bearing
25 220-82135 Idler Hub 1 008-213-05 5200 lbs. axles, 6 on 5.50", includes bearing cups, Uses LM67048 outer bearing
220-82139 Idler Hub 1 008-213-09 6000 lbs. axles, 6 on 5.50", includes bearing cups, Uses 15123 outer bearing
28 220-6191 Axle Nut for E-Z Lube 1 006-191-00 (after 2002)

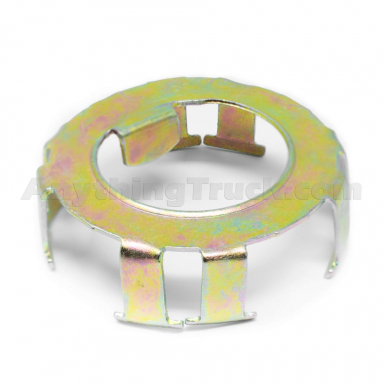

29 220-6190 Retainer for E-Z Lube Axle Nut 1 006-190-00 (after 2002)
