Fruehauf NF-2 Pro-Trac
Trailer Suspension Parts

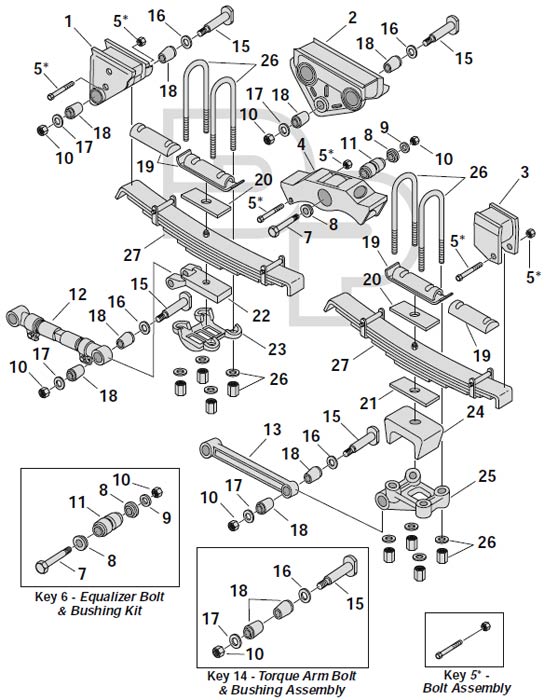

Fruehauf NF-2 Pro-Trac Suspension Exploded View
Key
No.		 Part
Number		 Description No.
Req.		 OEM
Number		 Remarks

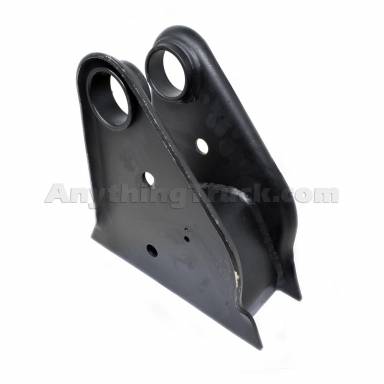

1 M21194 Hanger 2 UCF006668-001
2 338-1234 Hanger 2 UCF006672-001
3 338-1235 Hanger 2 UCF005858-002
4 338-1126 Equalizer 2 UCF008317-001
UCF008317-002
5 334-770 Bolt Assembly
5/8"-18 x 5" 		2 FSP005-03-049 Includes nut and washers
6 334-819 Equalizer Bolt &
Bushing Service Kit		 2
7 334-317 Equalizer Bolt
1"-14 x 6-1/2" 		2 FSP005-03-028
8 334-821 Equalizer Bushing Collar 4 UCF006703-001
9 SFW-100 1" Flat Washer 2
10 SLN-107 1"-14 Lock Nut 10
11 321-266 Equalizer Bushing 2 UCF006699-001

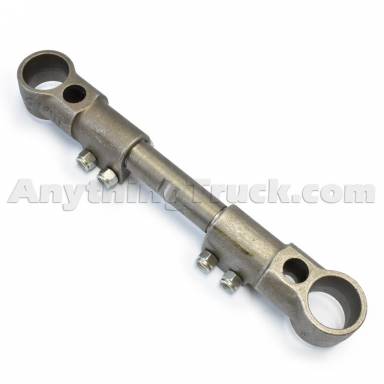

12 M2151 Torque Rod, Adjustable
14-3/4" - 16-3/8" 		1 UCF002460-001 Use E1023 bushing service kit

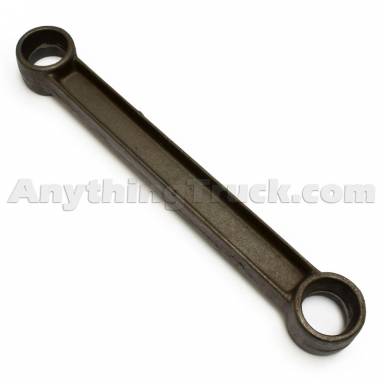

13 M2152 Torque Rod, Rigid
15-1/2" C to C 		1 UXA000026-001 Use E1023 bushing service kit

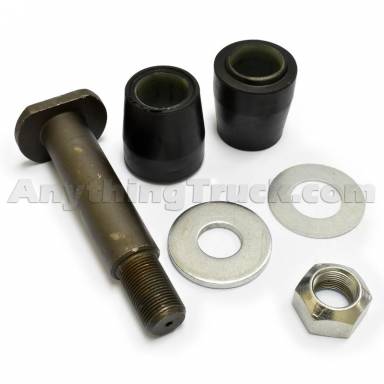

14 E-1023 Torque Rod Bushing and
Bolt Service Kit		 8 UXA000011-900
15 345-566 Torque Rod Bolt 4 UXA000016 Use E1023 bushing and bolt service kit
16 SFW-125 1-1/4" Flat Washer 4
17 334-568 Compression Washer 4 UXA000002
18 321-177 Bushing 8 UXA000011 With nylon sleeve; Use E1023 service kit
19 1686801 U-Bolt Saddle 2 UCE008801-001
20 GL-295 Liner 2

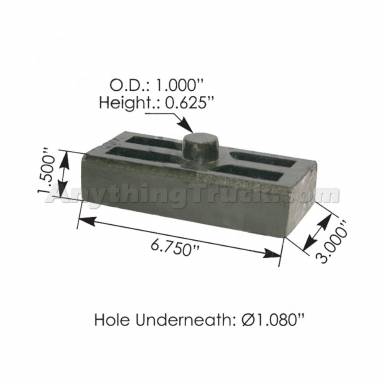

21 E-2838 Spacer
1-1/2"Thk 		2 UXA000048

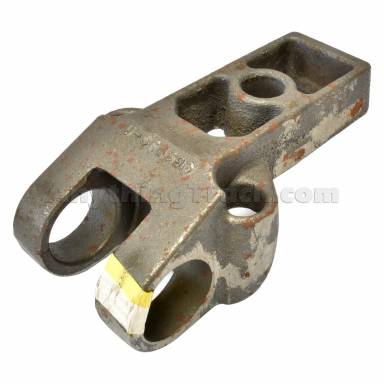

22 E-10778 Torque Rod Bracket
5" Square Axle 		2 UCF006696-001
23 338-471 Bottom Clamp Plate 2 UCC002610-001
24 338-1111 5" Square Axle Seat 2 AXA000512-001
25 338-1238 Torque Rod Bracket 2 UCC004920-001 No Hop
26 EUB516114 U-Bolt Assembly 8 UXA000046-917 7/8" x 3 x 14R
27   Spring Assembly 4 Various
