Freightliner 120 Series Conventional/COE & FLD112 Conventional
Front Suspension Parts

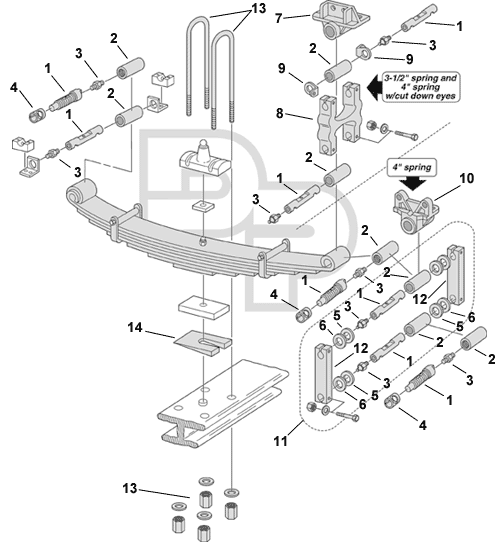

Freightliner 120 Series Conventional/COE & FLD112 Conventional Suspension Parts
Key
No.		 Part
Number		 Description No.
Req.		 OEM
Number		 Remarks
1 327490 Spring Pin; Threaded
1-1/4"-7 x 7.14" L
5-3/8" C to C 		6 16-12302-000 Used w/ TB-73 Bushing
1 327175 Spring Pin;
1-1/4" OD x 6-6/38" L
4-29/32" C to C 		2 16-10509-000 Use w/3-1/2" Spring Eyes and RNI or TNI Bushing
1 327487 Spring Pin;
1-1/4" OD x 6-7/8" L
5-3/8" C to C 		6 16-13470-000
16-12373-000		 Use w/4" Spring and RNK or TNK Bushing
1 327176 Spring Pin;
1-1/4" OD x 5-3/4" L
4-1/2" C to C 		2 16-10510-000 Use w/RNI or TNI Bushing and "H" Shackle (3-1/2" Spring Eye)
2 TB73 Bushing, Threaded
1-1/2" OD x 4" L
1-1/4"-7 Thread 		6 16-12301-000
2 RNIBM Bushing, Bi-Metal
1-1/4" ID x 1-1/2" OD x 3-1/2" L 		4/6 16-01005-000
2 322100 Bushing, Bi-Metal
1-1/4" ID x 1-1/2" OD x 4" L 		4 16-12399-001
2 TNI Bushing
1-1/4" ID x 1-1/2" OD x 3-1/2" L 		4 16-01005-001 Spring Eyes Only
2 TNK Bushing
1-1/4" ID x 1-1/2" OD x 4" L 		2
2 322141 Bushing, w/Seals 6 A16-12399-001 Replaces PB18
3 800 Fitting. Grease Zerk
1/8"-27NPT		 6 1613B
4 3341583 Sleeve
1-14" OD x 1" ID x 1" L 		4 16-09598-000
5 3341584 Shim
1-1/4" OD x 1/32" Thick
1-1/4" Hole 		A/R 23-09860-012
6 3341585 Shim
1-7/8" OD x 5/32" Thick
1-1/4" Hole 		A/R 23-11656-018
7 338738 Hanger, Shackle 2 16-09906-000 Use w/ "H" Shackle
8 330142 "H" Shackle 2 16-10241-000 Use w/3-1/2" Spring and 4" w/Cut-Down Eye
9 334804 Shim;
1-3/8" x 0.046" Thick 		8 16-09040-001 Shim for 3-1/2" Springs
10 3381878 Hanger, Shackle 2 16-12358-001 Iron, includes TB73
10 338758A Hanger, Shackle 2 16-12355-001
16-12297		 Aluminum
10 3381838 Hanger, Shackle 2   Iron
11 FL1100 Shackle Kit 2   Includes 330123, 327487, TNK, 322100, and Hardware
11 330345 Shackle Kit 2   Includes 330344, 327487, TNK, 322100, and Hardware
12 330123 Side Bar
7-3/4" L x 5-5/16" C to C
1" Thick
1-1/4" Pin Holes 		4 16-11890-000 Used with 4" Springs
12 330344 Side Bar
6-3/4" L x 4-5/16" C to C
1" Thick
1-1/4" Pin Holes 		4 16-13333-000
13 361186 U-Bolt Kit;
Round Bend, Grade 8 		4 10-09075-105 3/4" x 3-1/2" x 10-1/2", Round Bend, Includes nuts and washers
13 361188 U-Bolt Kit;
Round Bend, Grade 8 		4 10-09075-125 3/4" x 3-1/2" x 12-1/2", Round Bend, Includes nuts and washers
13 361190 U-Bolt Kit;
Round Bend, Grade 8 		4 11-09363-110 3/4" x 4" x 11-3/8", Round Bend, Includes nuts and washers
13 361192 U-Bolt Kit;
Round Bend, Grade 8 		4 10-09424-120 7/8" x 3-9/16" x 12-3/8", Round Bend, Includes nuts and washers
13 361194 U-Bolt Kit;
Round Bend, Grade 8 		4 11-9624-120 7/8" x 4" x 12-1/4", Round Bend, Includes nuts and washers
14   Aluminum Wedge
1 2
Bi-Metal Spring Pin Bushing, 1-1/4" ID x 1-1/2" OD x 3-1/2" Long

Bi-Metal Spring Pin Bushing, 1-1/4" ID x 1-1/2" OD x 3-1/2" Long

Part# 285-RNIOGB

$9.70 USD Not Yet Rated

322-100 Bi-Metal Spring Pin Bushing, 1-1/4" ID x 1-1/2" OD x 4" Long

322-100 Bi-Metal Spring Pin Bushing, 1-1/4" ID x 1-1/2" OD x 4" Long

Part# 797-322100

$9.45 USD Not Yet Rated

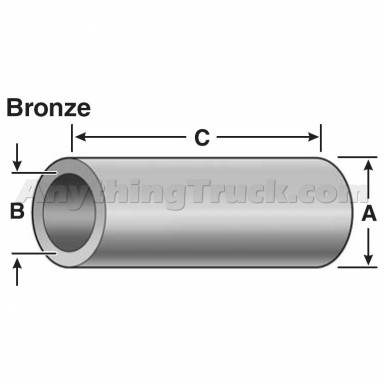

Bronze Spring Pin Bushing, 1-1/4" ID x 1-5/8" OD x 4" Long

Bronze Spring Pin Bushing, 1-1/4" ID x 1-5/8" OD x 4" Long

Part# 285-TNK

$28.10 USD Not Yet Rated

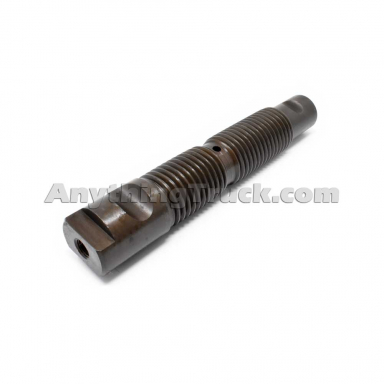

Dayton Parts 327-490 Spring Pin, Threaded 1-1/4"-7 x 7.14" Long x 5-3/8" Lock Center to Center

Dayton Parts 327-490 Spring Pin, Threaded 1-1/4"-7 x 7.14" Long x 5-3/8" Lock Center to Center

Part# 797-327490

$26.22 USD Not Yet Rated

PTP 327487 Spring Pin, Double Lock, 1-1/4" OD x 6-7/8" Long x 5-3/8" Lock Center to Center

PTP 327487 Spring Pin, Double Lock, 1-1/4" OD x 6-7/8" Long x 5-3/8" Lock Center to Center

Part# 797-327487

$26.44 USD Not Yet Rated

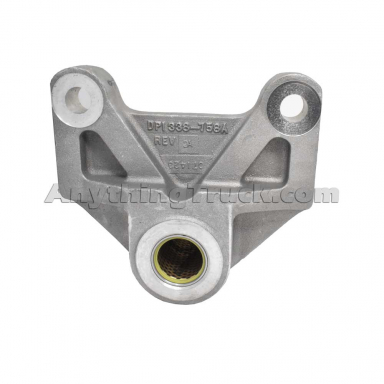

Steer Axle Rear Spring Hanger for Freightliner 120 Series and FLD112

Steer Axle Rear Spring Hanger for Freightliner 120 Series and FLD112

Part# 797-338758A

$101.79 USD Not Yet Rated

U-Bolt Kit, 3/4" x 3-1/2" x 10-3/8" Round Bend, One U-Bolt with Washers and Nuts (*No Returns)

U-Bolt Kit, 3/4" x 3-1/2" x 10-3/8" Round Bend, One U-Bolt with Washers and Nuts (*No Returns)

Part# 797-361186

$28.21 USD Not Yet Rated

U-Bolt Kit, 3/4" x 3-1/2" x 12-3/8" Round Bend, One U-Bolt with Washers and Nuts (*No Returns)

U-Bolt Kit, 3/4" x 3-1/2" x 12-3/8" Round Bend, One U-Bolt with Washers and Nuts (*No Returns)

Part# 797-361188

$30.62 USD Not Yet Rated

U-Bolt Kit, 3/4" x 4" x 11-1/4" Round Bend, One U-Bolt with Washers and Nuts (*No Returns)

U-Bolt Kit, 3/4" x 4" x 11-1/4" Round Bend, One U-Bolt with Washers and Nuts (*No Returns)

Part# 797-361190

$29.09 USD Not Yet Rated

U-Bolt Kit, 7/8" x 3-1/2" x 12-1/4" Round Bend, One U-Bolt with Washers and Nuts (*No Returns)

U-Bolt Kit, 7/8" x 3-1/2" x 12-1/4" Round Bend, One U-Bolt with Washers and Nuts (*No Returns)

Part# 797-361192

$37.54 USD Not Yet Rated

U-Bolt Kit, 7/8" x 4" x 12-1/4" Round Bend, One U-Bolt with Washers and Nuts (*No Returns)

U-Bolt Kit, 7/8" x 4" x 12-1/4" Round Bend, One U-Bolt with Washers and Nuts (*No Returns)

Part# 797-361194

$37.54 USD Not Yet Rated

MFL4668 Shackle Kit Freightliner

MFL4668 Shackle Kit Freightliner

Part# 052-MFL4668

$113.96 USD Not Yet Rated
