Ford LN/LNT
Front Suspension with 4" Wide Springs


1985-1998 Ford LN700
1970-1987 Ford 9K - 14.6K
1970-1997 Ford LN/LNT 800/900 16K-20K

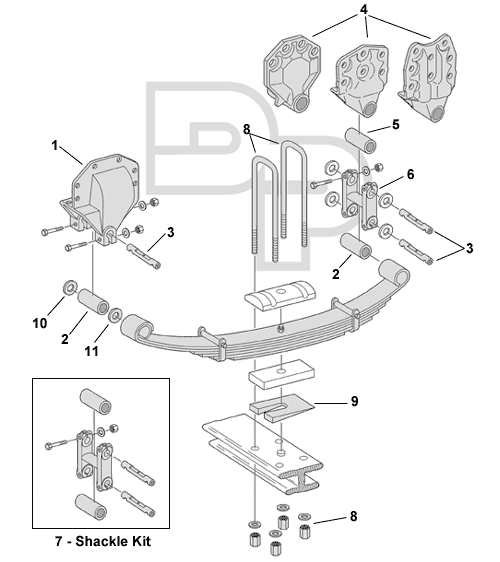

Front Axles with 4" Wide Springs

Key
No.		 Part
Number		 Description No.
Req.		 OEM
Number		 Remarks
1 N/A Hanger, Front, LH 2 E8HZ5340B LN Series
1 N/A Hanger, Front, RH 2 E8HZ5340A LN Series
1 N/A Hanger, Front, LH 2 E8HZ5340D LNT Series
1 N/A Hanger, Front, RH 2 E8HZ5340C LNT Series 1990
1 N/A Hanger, Front, RH 2 F1HZ5340C LNT Series 1991 & up
2 NJKBM Bushing, Bi-Metal;
1" ID x 1-1/4" OD x 4" L 		4 C7TZ5348C
3 327211 Spring Pin;
1" OD x 6-1/8" L x 4-7/8" C to C 		4/6 D0HZ5780F Double Lock
3 327209 Spring Pin;
1" OD x 6-3/4" L x 5-1/8" C to C 		4/6 D0HZ5780E Double Lock
4 338847 Hanger, Shackle 1 E5HZ5340A 12K axles & under; Casting No's. E4HT5335BA, F3HT5335BA
4 338936 Hanger, Shackle; 16K-20K Axles 1 E5HZ5340B 1973-6/85; Frame: Straight & Reinforced; Casting No's. D2HA5335AA, E4HT5335CA
4 338935 Hanger, Shackle; 16K-18K Axles 1 E5HZ5340D
F2HZ5340D
5 324129 Bushing, Bronze;
1" ID x 1-1/4" OD x 4" L 		4/6 F2HZ5348A 1990 and Up Shackle Hangers; Replace with NJKBM
6 330106 Shackle, Cast; 3-3/4" C to C 2 D0HA5B311A
6 330196 Shackle, Cast; 4" C to C 2 F0HZ5B311A
F0HT5B311AA
7 330100 Shackle Kit 2 E5HZ5304A Includes one 330106 shackle, one 334129 bushing, one NJKBM bushing, two 327211 spring pins and hardware
7 330197 Shackle Kit 2   Includes one 330196 shackle, one 334129 bushing, one NJKBM bushing, two 327211 spring pins and hardware
8 361318 U-Bolt Kit;
Special Bend, Grade 8
* Non-Returnable Custom Order 		4 D0HZ5455A 5/8" x 4" x 7-3/8", Ford Semi-Round Bend, Includes nuts and washers
8 361320 U-Bolt Kit;
Special Bend, Grade 8
* Non-Returnable Custom Order 		4 D0HZ5455B 5/8" x 4" x 9-1/4", Ford Semi-Round Bend, Includes nuts and washers
8 361316 U-Bolt Kit;
Special Bend, Grade 8
* Non-Returnable Custom Order 		4 D0HZ5455C 3/4" x 4" x 10-1/4", Ford Semi-Round Bend, Includes nuts and washers
8 361322 U-Bolt Kit;
Special Bend, Grade 8
* Non-Returnable Custom Order 		4 D0HZ5455S 3/4" x 4" x 12-1/4", Ford Semi-Round Bend, Includes nuts and washers
8 361278 U-Bolt Kit;
Special Bend, Grade 8
* Non-Returnable Custom Order 		4   7/8" x 4" x 12-1/8", Ford Semi-Round Bend, Includes nuts and washers
9   Aluminum Wedge
10 334901 Shim; 0.30" Thick AR F4HZ5A879A 1988 and Up "L" Series
11 334902 Shim; 0.20" Thick AR F4HZ5A879B 1988 and Up "L" Series
NJKBM Bi-Metal Spring Pin Bushing, 1" ID x 1-1/4" OD x 4" Long

NJKBM Bi-Metal Spring Pin Bushing, 1" ID x 1-1/4" OD x 4" Long

Part# 797-NJKBM

$11.92 USD Not Yet Rated

Spring Pin, Double Lock, 1" OD x 6-3/4" Long x 5-1/8" Center to Center

Spring Pin, Double Lock, 1" OD x 6-3/4" Long x 5-1/8" Center to Center

Part# 797-327209

$14.32 USD Not Yet Rated

Spring Pin, Double Lock, 1" OD x 6-1/8" Long x 4-7/8" Center to Center

Spring Pin, Double Lock, 1" OD x 6-1/8" Long x 4-7/8" Center to Center

Part# 797-327211

$10.38 USD Not Yet Rated

Dayton Parts 330-100 Shackle Kit, 3-3/4" Center to Center, Replaces Ford D0HZ5304B

Dayton Parts 330-100 Shackle Kit, 3-3/4" Center to Center, Replaces Ford D0HZ5304B

Part# 797-330100

$110.87 USD Not Yet Rated

Ford Steer Axle Rear Spring Hanger with NJKBM Bushing

Ford Steer Axle Rear Spring Hanger with NJKBM Bushing

Part# 797-338847

$115.56 USD Not Yet Rated

Ford Steer Axle Rear Spring Hanger for 16K-20K Axles with Frame Reinforcement

Ford Steer Axle Rear Spring Hanger for 16K-20K Axles with Frame Reinforcement

Part# 797-338936

$108.56 USD Not Yet Rated

U-Bolt Kit, 3/4" x 4" x 10-3/4" Ford Semi-Round, One U-Bolt with Washers and Nuts (*No Returns)

U-Bolt Kit, 3/4" x 4" x 10-3/4" Ford Semi-Round, One U-Bolt with Washers and Nuts (*No Returns)

Part# 797-361316

$29.09 USD Not Yet Rated

U-Bolt Kit, 5/8" x 4" x 7-7/8" Ford Semi-Round, One U-Bolt with Washers and Nuts (*No Returns)

U-Bolt Kit, 5/8" x 4" x 7-7/8" Ford Semi-Round, One U-Bolt with Washers and Nuts (*No Returns)

Part# 797-361318

$22.26 USD Not Yet Rated

U-Bolt Kit, 5/8" x 4" x 9-3/8" Ford Semi-Round, One U-Bolt with Washers and Nuts (*No Returns)

U-Bolt Kit, 5/8" x 4" x 9-3/8" Ford Semi-Round, One U-Bolt with Washers and Nuts (*No Returns)

Part# 797-361320

$23.66 USD Not Yet Rated

U-Bolt Kit, 3/4" x 4" x 12-7/8" Ford Semi-Round, One U-Bolt with Washers and Nuts (*No Returns)

U-Bolt Kit, 3/4" x 4" x 12-7/8" Ford Semi-Round, One U-Bolt with Washers and Nuts (*No Returns)

Part# 797-361322

$31.16 USD Not Yet Rated

U-Bolt Kit, 7/8" x 4" x 12-7/8" Ford Semi-Round, One U-Bolt with Washers and Nuts (*No Returns)

U-Bolt Kit, 7/8" x 4" x 12-7/8" Ford Semi-Round, One U-Bolt with Washers and Nuts (*No Returns)

Part# 797-361278

$38.16 USD Not Yet Rated
