Ford CF/L/LS/LT/LTL/LTS
Front Suspension Parts


Key
No.		 Part
Number		 Description No.
Req.		 OEM
Number		 Remarks
1 N/A Hanger, Front, LH/RH 1 Various
2 NJKBM Bushing, Bi-Metal;
1" ID x 1-1/4" OD x 4" L 		4/6 C7TZ5348C
3 327209 Spring Pin;
1" OD x 6-3/4" L x 5-1/8" C to C 		4/6 D0HZ5780E Double Lock; For 16K axles and up
3 327211 Spring Pin;
1" OD x 6-1/8" L x 4-7/8" C to C 		4/6 D0HZ5780F Double Lock, For 12K-20K axles
4 3381196 Hanger, LH 1 F2HZ5340F LTS, LS, LA Set Back Axle
4 3381197 Hanger, RH 1 E5HZ5340E
D0HZ5340H 		LTS, LS, LA Set Back Axle

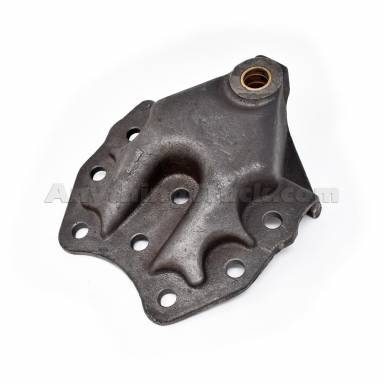

4 F06E Hanger, Shackle; 16K-18K Axles 2 E4HZ5340D 1973-6/85; Frame: Straight W/O reinforcement; Casting No's. D0HA5335J, E4HT5335EA
4 338936 Hanger, Shackle; 16K-20K Axles 2 F2HZ5340D 1973-6/85; Frame: Straight & reinforced; Casting No's. D2HA5335AA, E4HT5335CA
5 338847 Hanger, Shackle 2 E5HZ5340A
E4HT5335BA 		12K axles & under; Casting No's. E4HT5335BA, F3HT5335BA
6 3381334 Hanger Assembly 2 E6HZ5340B
F1HZ5340B		 CF600/700; 1986 and up
7 3381385 Hanger Assembly 2 F2HZ5340C
F3HT5335FA		 LLA, LLS, and LTS; w/58" taper springs
7 3381903 Hanger Assembly - 4 Hole 2 F2HZ5340F LLA, LLS, and LTS; w/58" taper springs
8 324106 Bushing, Bronze;
1" ID x 1-1/4" OD x 1-1/2" L 		4 E5HZ5348A
8 324129 Bushing, Bronze;
1" ID x 1-1/4" OD x 4" L 		2 F2HZ5348A 1980 and up shackle Hangers; Replace with NJKBM
8 NJKBM Bushing, Bi-Metal;
1" ID x 1-1/4" OD x 4" L 		4/6 C7TZ5348C
9 330106 Shackle, Cast; 3-3/4" C to C 2 D0HA5B311A CF Series; Use 330100 shackle kit
9 330196 Shackle, Cast; 4" C to C 2 F0HZ5B311A
F0HT5B311AA		 Use 330197 shackle kit
10 330100 Shackle Kit 2 E5HZ5304A Includes one 330106 shackle, one 334129 bushing, one NJKBM bushing, two 327211 spring pins and hardware
10 330197 Shackle Kit 2   Includes one 330196 shackle, one 334129 bushing, one NJKBM bushing, two 327211 spring pins and hardware
11 361318 U-Bolt Kit;
Special Bend, Grade 8
* Non-Returnable Custom Order 		4 D0HZ5455A 5/8" x 4" x 7-3/8", Ford Semi-Round Bend, Includes nuts and washers
11 361320 U-Bolt Kit;
Special Bend, Grade 8
* Non-Returnable Custom Order 		4 D0HZ5455B 5/8" x 4" x 9-1/4", Ford Semi-Round Bend, Includes nuts and washers
11 361316 U-Bolt Kit;
Special Bend, Grade 8
* Non-Returnable Custom Order 		4 D0HZ5455C 3/4" x 4" x 10-1/4", Ford Semi-Round Bend, Includes nuts and washers
11 361322 U-Bolt Kit;
Special Bend, Grade 8
* Non-Returnable Custom Order 		4 D0HZ5455S 3/4" x 4" x 12-7/8", Ford Semi-Round Bend, Includes nuts and washers
11 361278 U-Bolt Kit;
Special Bend, Grade 8
* Non-Returnable Custom Order 		4 465921C1 7/8" x 4" x 12-1/8", Ford Semi-Round Bend, Includes nuts and washers
1 2
NJKBM Bi-Metal Spring Pin Bushing, 1" ID x 1-1/4" OD x 4" Long

NJKBM Bi-Metal Spring Pin Bushing, 1" ID x 1-1/4" OD x 4" Long

Part# 797-NJKBM

$11.92 USD Not Yet Rated

Bronze Spring Pin Bushing, 1" ID x 1-1/4" OD x 1-1/2" Long, Use two per hanger

Bronze Spring Pin Bushing, 1" ID x 1-1/4" OD x 1-1/2" Long, Use two per hanger

Part# 797-324106

$23.61 USD Not Yet Rated

Spring Pin, Double Lock, 1" OD x 6-3/4" Long x 5-1/8" Center to Center

Spring Pin, Double Lock, 1" OD x 6-3/4" Long x 5-1/8" Center to Center

Part# 797-327209

$14.32 USD Not Yet Rated

Spring Pin, Double Lock, 1" OD x 6-1/8" Long x 4-7/8" Center to Center

Spring Pin, Double Lock, 1" OD x 6-1/8" Long x 4-7/8" Center to Center

Part# 797-327211

$10.38 USD Not Yet Rated

Dayton Parts 330-100 Shackle Kit, 3-3/4" Center to Center, Replaces Ford D0HZ5304B

Dayton Parts 330-100 Shackle Kit, 3-3/4" Center to Center, Replaces Ford D0HZ5304B

Part# 797-330100

$110.87 USD Not Yet Rated

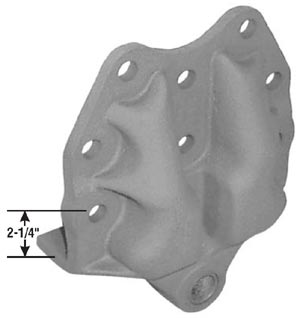

Ford Steer Axle Rear Spring Hanger for 16K-20K Axles with Frame Reinforcement

Ford Steer Axle Rear Spring Hanger for 16K-20K Axles with Frame Reinforcement

Part# 797-338936

$108.56 USD Not Yet Rated

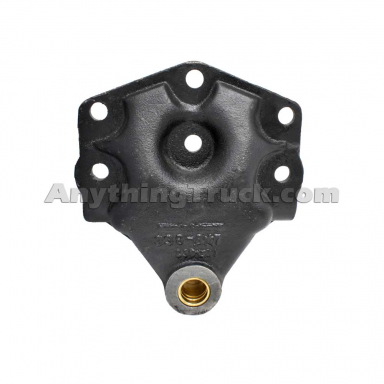

Ford Steer Axle Rear Spring Hanger with NJKBM Bushing

Ford Steer Axle Rear Spring Hanger with NJKBM Bushing

Part# 797-338847

$115.56 USD Not Yet Rated

U-Bolt Kit, 3/4" x 4" x 10-3/4" Ford Semi-Round, One U-Bolt with Washers and Nuts (*No Returns)

U-Bolt Kit, 3/4" x 4" x 10-3/4" Ford Semi-Round, One U-Bolt with Washers and Nuts (*No Returns)

Part# 797-361316

$29.09 USD Not Yet Rated

U-Bolt Kit, 5/8" x 4" x 7-7/8" Ford Semi-Round, One U-Bolt with Washers and Nuts (*No Returns)

U-Bolt Kit, 5/8" x 4" x 7-7/8" Ford Semi-Round, One U-Bolt with Washers and Nuts (*No Returns)

Part# 797-361318

$22.26 USD Not Yet Rated

U-Bolt Kit, 5/8" x 4" x 9-3/8" Ford Semi-Round, One U-Bolt with Washers and Nuts (*No Returns)

U-Bolt Kit, 5/8" x 4" x 9-3/8" Ford Semi-Round, One U-Bolt with Washers and Nuts (*No Returns)

Part# 797-361320

$23.66 USD Not Yet Rated

U-Bolt Kit, 3/4" x 4" x 12-7/8" Ford Semi-Round, One U-Bolt with Washers and Nuts (*No Returns)

U-Bolt Kit, 3/4" x 4" x 12-7/8" Ford Semi-Round, One U-Bolt with Washers and Nuts (*No Returns)

Part# 797-361322

$31.16 USD Not Yet Rated

U-Bolt Kit, 7/8" x 4" x 12-7/8" Ford Semi-Round, One U-Bolt with Washers and Nuts (*No Returns)

U-Bolt Kit, 7/8" x 4" x 12-7/8" Ford Semi-Round, One U-Bolt with Washers and Nuts (*No Returns)

Part# 797-361278

$38.16 USD Not Yet Rated
