Ford B600/B700 & F600/F700
Front Suspensions with 2-1/2" Wide Springs


Key
No.		 Part
Number		 Description No.
Req.		 OEM
Number		 Remarks
1 N/A Hanger, Front, LH/RH Stamped 2 E0HZ5340A
E0HT5A324AA		 1980 & up w/9K axles and below
1 N/A Hanger, Front, Stamped 2 D5TZ5340A
D5TA5B312AA		 1967-1979 w/9K axles and below
2 N/A Bushing
3/4" ID x 1-11/16" OD x 2-3/4" L 		2 C7TZ5348B
3 N/A Bolt Assembly
3/4"-16 x 4" L 		2 9418882 Includes bolt and hardware

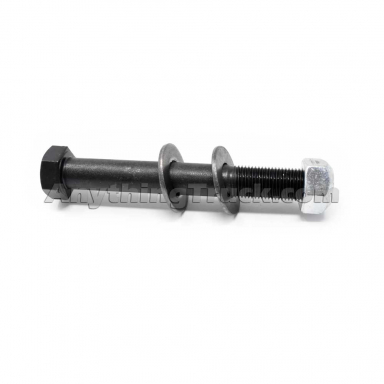

4 334766 Bolt Assembly,
1/2"-20 x 4" 		2   Includes Bolt and Hardware
5 338900 Hanger, Stamped 2 E7HZ5340B 9K axles and below; Use 334766 bolt assembly
6 334501 Insulator, Rear Spring 2 E6HZ5A342B All series w/9K axles and below w/ hydraulic brakes

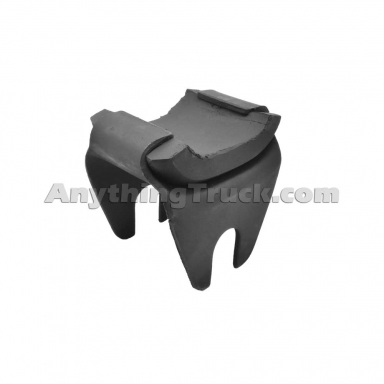

6 334660 Insulator 2 E6HZ5A342A All series w/9K axles and below w/ air brakes
7 361312 U-Bolt Kit;
Special Bend, Grade 5
* Non-Returnable Custom Order 		4 D2TZ4544A 9/16" x 2-1/2" x 5-3/4", Ford Semi-Round Bend, Includes nuts and washers
7 361314 U-Bolt Kit;
Special Bend, Grade 8
* Non-Returnable Custom Order 		4 E1HZ5455A 5/8" x 2-1/2" x 7-5/8", Ford Semi-Round Bend, Includes nuts and washers
8   Aluminum Wedge
