Mack SWS573 Camelback
4" Spring, Rubber/Metal Center Bushing
Drive Axle Suspension Parts

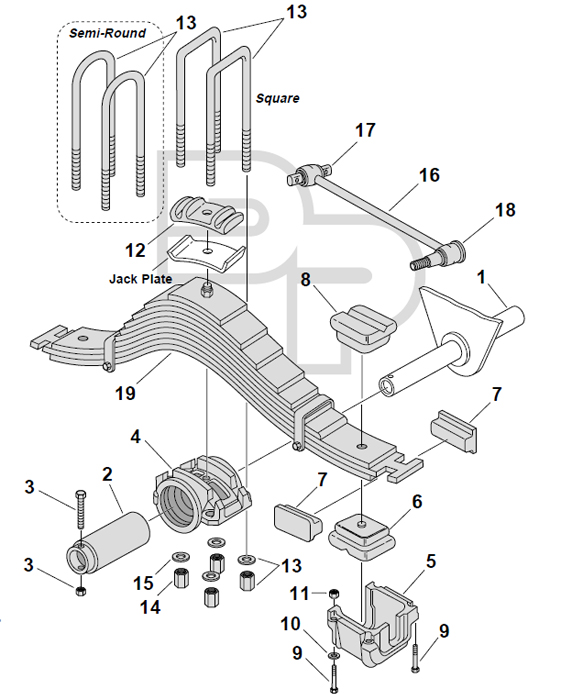

Mack SWS573 Camelback Suspension Exploded View
Key
No.
Part
Number
Description No.
Req.
OEM
Number
Remarks
1 N/A Spindle for 8-3/4" Wide Trunnion 2 85QK248
2 321-171 Bushing, Metal 8-3/4" Trunion 2 10QK371A 10-5/8" Long
321-170 Bushing 2 10QK368A 9-7/16"

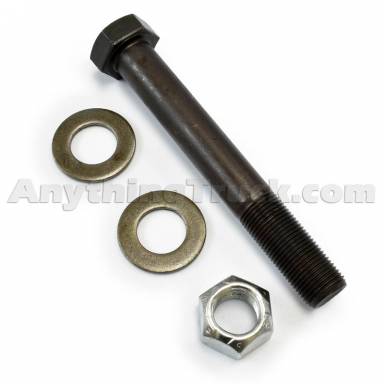

3 334-756 Bolt Assembly, 3/4"-16 x 5-1/2" Long 2 3XA1525 Bolt & Lock Nut
4 338-704 Trunnion Assy, 8-3/4" 2 39QK226C
338-1785 Trunnion Assy 2 39QK426B

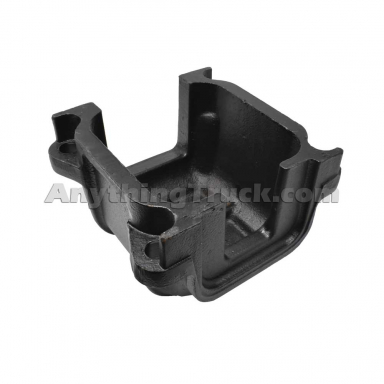

5 338-728 Insulator Box, 6-3/8" Deep 4 52QK418BP5
338-746 Insulator Box, 6-3/4" Deep 4 52QK418BP4

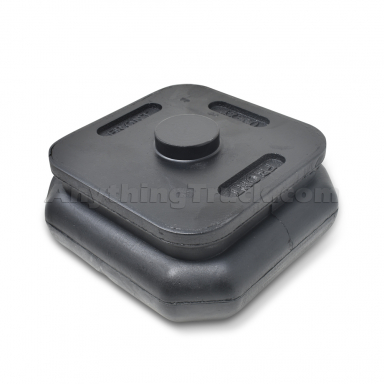

6 325-110 Insulator, Standard, Rubber, 1-3/4" Dowel 4 10QK36B

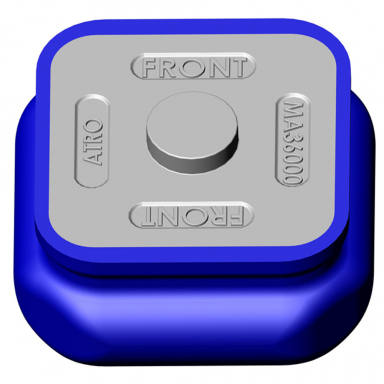

MA36000 Insulator, Standard, Polyurethane, 1-3/4" Dowel 4
325-125 Insulator, Offset, Rubber, 1-3/4" Dowel AR 10QK48

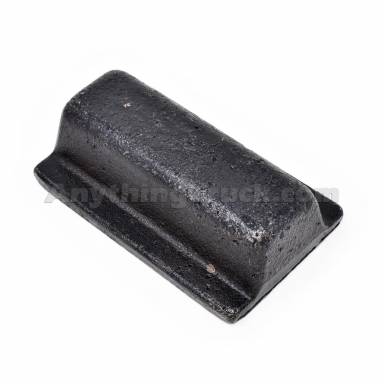

7 338-729 Spacer, 3" W x 4" L 1-1/2" Thick 8 13QK246

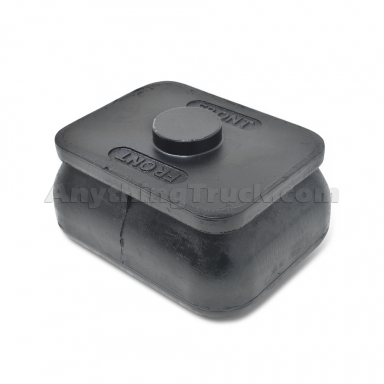

8 325-113 Insulator, Rubber, 1-3/4" Dowel 4 10QK370

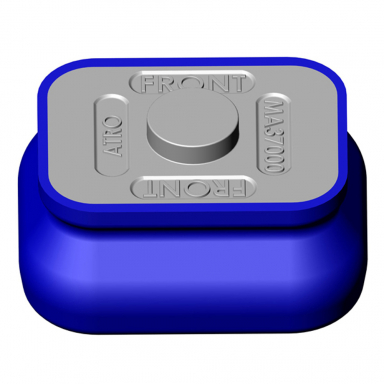

MA37000 Insulator, Polyurethane, 1-3/4" Dowel 4
325-108 Insulator, 1-1/2" Dowel 4 10QK32BP1
9   Insulator Box Bolt, 7/8"-14 Thread 16

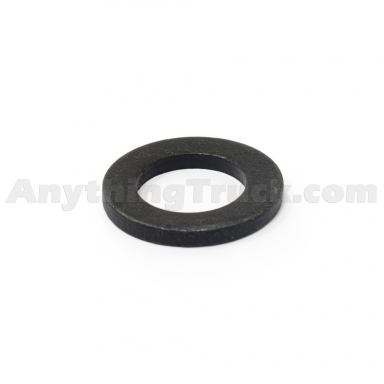

10 SUW78 Hardened Flat Washer, 7/8" 12 35AX1310, 22962-2

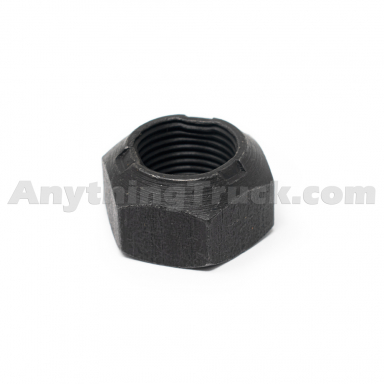

11 SLN106 7/8"-14 Lock Nut 12 21AX480
12 338-714 U-Bolt Saddle, 9-3/4" L x 4" W 2 8QK335P2 Use with Semi-Round U-Bolts; Replaces Jack Plate
13   U-Bolt Assembly, Square or Semi-Round 4   Use Square Bend U-Bolts with Jack Plate; Use Semi-Round Bendi U-Bolts with Cast Top Plate (Current Design)
14 DN125 U-Bolt Nut, 1-1/4"-12 8 21AX131
15 SUW125 U-Bolt Washer, 1-1/4" 8
16   Torque Rod, Fixed 2
17 321-267 Bushing 2   7/8" Bolt Holes
18 321-136 Bushing, Taper Stud Type 2 46735 Mack Style Stud
321-136U Bushing, Polyurethane, Taper Stud Type 2
19   Spring Assembly 2   Call for assistance
