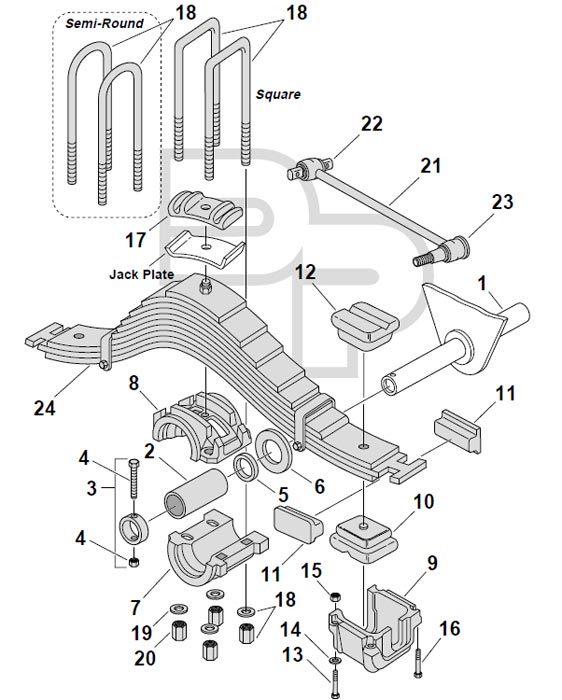

Mack SS34/38 Camelback
4" Spring, Two-Piece Trunnion
Drive Axle Suspension Parts
| Key No. |
Part Number |
Description | No. Req. |
OEM Number |
Remarks |
|---|---|---|---|---|---|
| 1 | N/A | Spindle for 8-3/4" Wide Trunnion | 2 | 85QK248 | |
| 2 | 325-118 | Bushing, 8-3/4" Trunion 3-1/2" ID x 4-7/16" x 6-5/16" Long |
2 | 10QK219P3 | |
| MA10000 | Bushing, Polyurethane, 8-3/4" Trunion 3-1/2" ID x 4-7/16" x 6-5/16" Long |
2 | |||
| 325-117 | Bushing, 8-3/16" Trunion 3-1/2" ID x 4-7/16" x 5-9/16" Long |
2 | 10QK219P, 10QK219P1 | ||
| 325-117U | Bushing, Polyurethane, 8-3/4" Trunion 3-1/2" ID x 4-7/16" x 6-5/16" Long |
2 | |||
| 325-115 | Bushing, 9-1/4" Trunion | 2 | 10QK130P1 | Use with 39QK32, 414 Castings Only | |
| 325-115U | Bushing, Polyurethane, 9-1/4" Trunion | 2 | |||

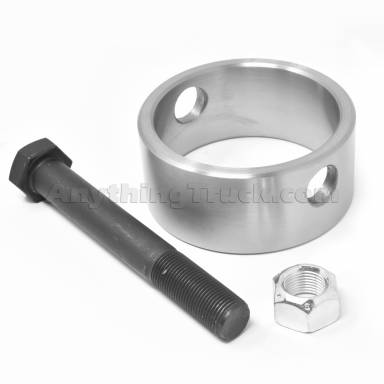

| 3 | 334-479 | Outer Spacer, 3-1/2" ID, x 4-1/2" OD x 1-3/4" | 2 | 44RU2221P2 | 8-3/4" Trunnion, Includes Bolt & Lock Nut |
| 334-1179 | Outer Spacer, 3-1/2" ID, x 4-1/2" OD x 2-1/4" | 2 | 44RU221P1 | 8-3/4" Trunnion, Old Style | |
| 4 | 334-579 | Bolt Assembly, 3-/4"16 x 5-1/2" Long | 2 | 3AX1525 | Bolt & Lock Nut |

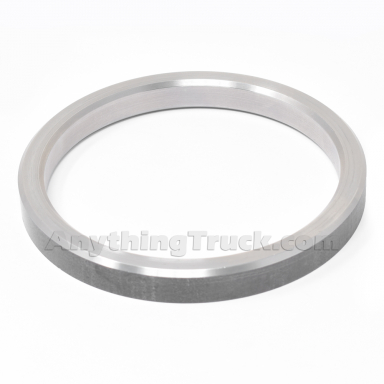

| 5 | 334-480 | Inner Spacer, 3-1/2" ID x 4-1/8" OD x 7/16" | 2 | 44RU2223P2 | Used with 325-118 Bushing |
| 334-1178 | Inner Spacer, 3-1/2" ID x 4-1/8" OD x 1/2" | 2 | 44RU2223P1 | Used with 325-117 Bushing | |
| 6 | 334-481 | Inner Spacer, 3-1/2" ID x 4-7/8" OD x 3/8" | 2 | 44RU2224 | Old Style, Used with 325-117 Bushing |
| 7 | 338-710 | Trunnion Clamp Half | 4 | 39QK431 | Current, 8-3/4" Trunnion, Use with 325-118 Bushing |
| 338-712 | Trunnion Clamp Half | 4 | 39QK37C | Old Style, 8-3/16" Trunnion, Use with 325-117 Bushing | |
| 8 | 338-709 | Trunnion Seat Half | 2 | 39QK433A | Current, 8-3/4" Trunnion, Use with 325-118 Bushing |
| 338-711 | Trunnion Seat Half | 2 | 39QK423C | Old Style, 8-3/16" Trunnion, Use with 325-117 Bushing | |
| 9 | 338-1787 | Insulator Box, 5-7/8" Deep | 4 | 52QK442P2, 52QK447P2 | Ductile Iron |
| 338-746 | Insulator Box, 6-3/4" Deep | 4 | 52QK418BP4 | ||
| 338-728 | Insulator Box, 6-3/8" Deep | 4 | 52QK418BP5 | ||

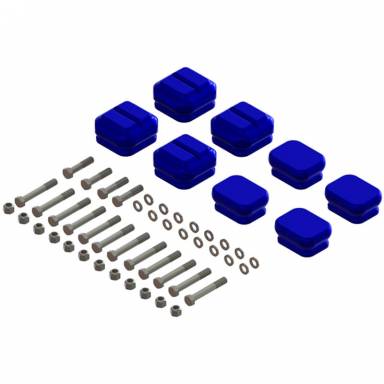

| 10 | 325-110 | Insulator, Standard, Rubber, 1-3/4" Dowel | 4 | 10QK36B | |
| MA36000 | Insulator, Standard, Polyurethane, 1-3/4" Dowel | 4 | |||
| 325-125 | Insulator, Offset, Rubber, 1-3/4" Dowel | AR | 10QK48 | ||
| 11 | 338-729 | Spacer, 3" W x 4" L 1-1/2" Thick | 8 | 13QK246 | |
| 12 | 325-112 | Insulator, Rubber, 1-3/4" Dowel | 4 | 10QK3656A | |

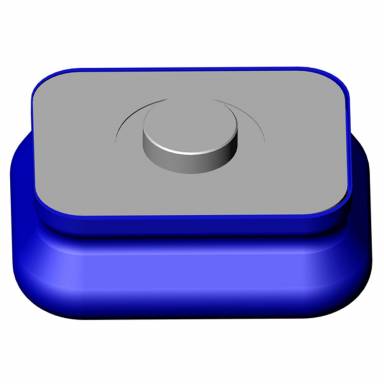

| MA36500 | Insulator, Polyurethane, 1-3/4" Dowel | 4 | |||
| 325-109 | Insulator, Rubber | 4 | 10QK32A | ||
| 325-109U | Insulator, Polyurethane | 4 | |||
| 325-113 | Insulator, Rubber, 1-3/4" Dowel | 4 | 10QK370 | ||
| MA37000 | Insulator, Polyurethane, 1-3/4" Dowel | 4 | |||
| 13 | Insulator Box Bolt, 7/8"-14 Thread | 4 | |||
| 14 | SUW78 | Hardened Flat Washer, 7/8" | 12 | 35AX1310, 22962-2 | |
| 15 | SLN106 | 7/8"-14 Lock Nut | 12 | 21AX480 | |
| 16 | Insulator Box Bolt, 7/8"-9 Thread | 4 | |||
| 17 | 338-718 | U-Bolt Saddle, 8-1/2" L x 4" W | 2 | 8QK335P1 | Replaces Jack Plate; Use Semi-Round U-Bolts |
| 18 | U-Bolt Assembly, Square or Semi-Round | 4 | Use Square Bend U-Bolts with Jack Plate; Use Semi-Round Bendi U-Bolts with Cast Top Plate (Current Design) | ||
| 19 | SUW125 | U-Bolt Washer, 1-1/4" | 8 | ||
| 20 | DN125 | U-Bolt Nut, 1-1/4"-12 | 8 | 21AX131 | |
| 21 | Torque Rod, Fixed | 2 | |||
| 22 | 321-132 | Bushing, Straddlemount, 2-3/4" OD x 4-3/8" C to C | 2 | 44695, 227720 | For 5/8" Bolts and 1-1/4" Forged Rod |
| TS38000 | Bushing, Polyurethane, Straddlemount, 2-3/4" OD x 4-3/8" C to C | 2 | 44695, 227720 | For 5/8" Bolts and 1-1/4" Forged Rod | |
| 23 | 321-136 | Bushing, Taper Stud Type | 2 | 46735 | Mack Style Stud |
| 321-136U | Bushing, Polyurethane, Taper Stud Type | 2 | |||
| 24 | Spring Assembly | 2 | Call for assistance |
1
2
