Chalmers 600 Series
Truck Suspension Parts

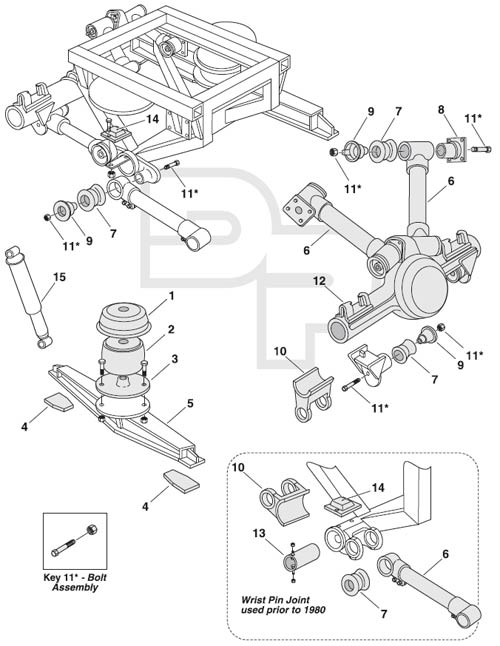

Chalmers 600 Series Truck Suspension Breakdown
Key
No.		 Part
Number		 Description No.
Req.		 OEM
Number		 Remarks
1 334860 #28 Restrictor Can, 4-7/16"H x 12-5/8" Dia. x 3/16" Thick 2 373028, 373020 44K Tandem or Widespread, w/o/ hole, Standard
1 334861 #29 Restrictor Can, 5-11/64"H x 11-5/8" Dia. x 3/16" Thick 2 373029, 373021 44K Tandem or Widespread, High Stability
2 CH9E Spring, Rubber, 8" H x 9-1/2" Diameter 2 15002 20K Loadguard Spring
3 334864 Plate, Bottom Spring 2 22116
4 334945 Plate, Beam End Repair - All Beams 4 700313 Replace beam when wear exceeds 0.030"
5 Special Order Walking Beam 2 Various
6 345674 Torque Rod, Rigid, 21-1/2"   223214 Type 0 & 1 Joints
6 345676 Torque Rod, Rigid, 23"   223240 Type 0 & 1 Joints

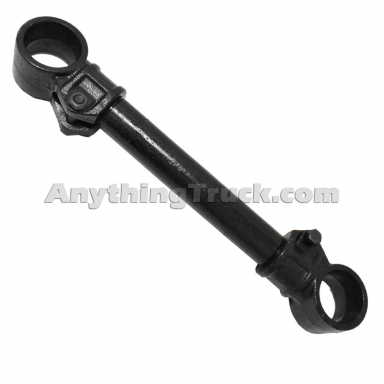

6 345685 Torque Rod, Adjustable, 23" Mean Length   216240 Type 0 & 1 Joints
6 345678 Torque Rod, Adjustable, 21-1/2" Mean Length   216214 Type 0 & 1 Joints
7 PL1047 2-piece Polyurethane Bushing 32 22128, 22082 Use urethane bushings for longer life. Requires 2 pieces per rod end.
7 321274 2-3/8"ID x 3-7/32"OD x 3-25/32"Lg. 16 22129 Oversize OD
8 3381315 Spigot Base, 25° 2 2600010
9 321275 Spigot Cap 16 260002 Type 0 Joints
10 3381314 Bracket, Torque Rod, 5" Round Axles 8 48017 Wrist Pin Type
11 334624 Bolt Assembly, 5/8"-11 x 3-1/2" 16 K880230 Type 0 Joints
12 3381406 Saddle, Rockwell Axles 4 248001
12 3381407 Saddle, High 4 248027
13 334854 Pin, 2"ID x 2-3/8"OD x 6"Lg. 8 22037 Used Prior to 1980
14 325159 Cushion, Low Rebound 2 48045
15 85029 Shock Absorber 2   Be sure this shock matches your existing shock before ordering
