Chalmers 1000 Series
Truck Suspension Parts
| Key No. |
Part Number |
Description | No. Req. |
OEM Number |
Remarks |
|---|---|---|---|---|---|
| 1 | Special Order | Torque Rod, Rigid, 15" | 2 | 223150 | 1023 Series, Type 1 Joint |
| 1 | Special Order | Torque Rod, Rigid, 14-1/8" | 2 | 805141 | 1030 Series, Type 1 Joint |

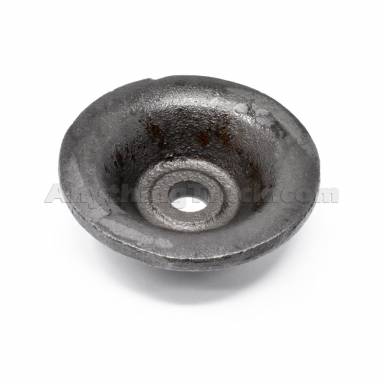

| 2 | 334853 | Spigot Cap | 8 | 800201 | Type 1 Joint |
| 2 | 334853 | Spigot Cap | 2 | 800201 | Type 1 Joint, 40K Suspension, After to 6/1/1992 |

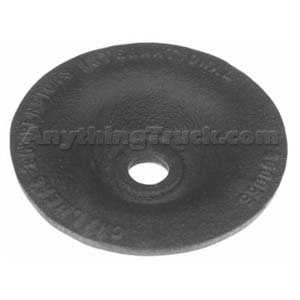

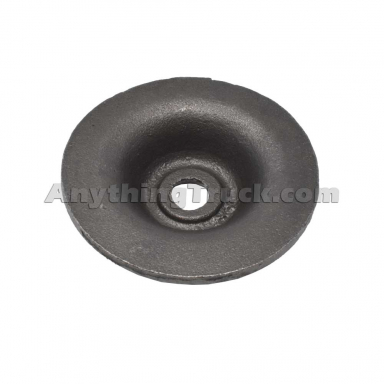

| 2 | 334855 | Spigot Cap | 2 | 800055 | Type 2 Joint |

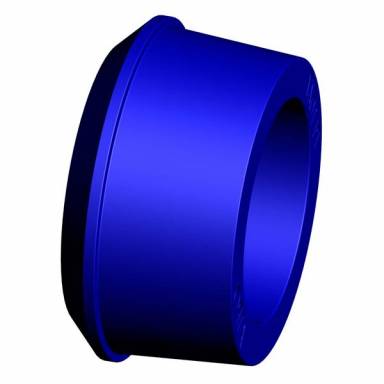

| 3 | PL1047 | 2-piece Polyurethane Bushing | 16 | 22128, 22082 | Use urethane bushings for longer life. Requires 2 pieces per rod end. |

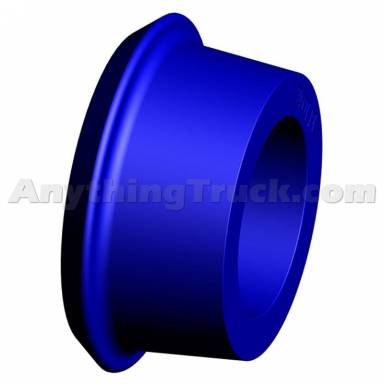

| 3 | 321274 | 2-3/8"ID x 3-7/32"OD x 3-25/32"Lg. | 8 | 22129 | Oversize OD |

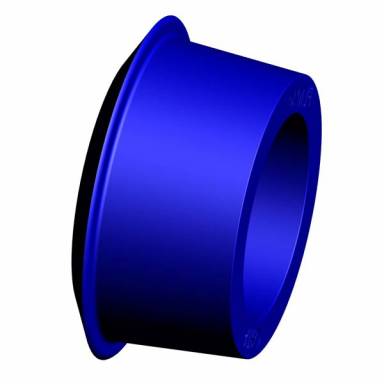

| 3 | PL1046 | 2-9/16"ID x 4-1/4"OD x 4-5/32"Lg. | 8 | 800010 | Standard OD, Type 2 Spigot Joint |
| 3 | 321277 | 2-9/16"ID x 4-1/2"OD x 4-5/32"Lg. | 8 | 800009 | Oversize OD, Type 2 Spigot Joint |
| 4 | 334754 | Bolt Assembly, 5/8"-11 x 5-1/2" | 16 | K880231 | Type 1 Joint |
| 4 | 334770 | Bolt Assembly, 5/8"-11 x 5" | 16 | K880640 | Type 2 Joint |
| 5 | 334944 | Service Kit, Rebound Control | 2 | K403017 | Includes 325158 rebound cushion |
| 6 | 325158 | Rebound Cushion | 2 | 22096 | |

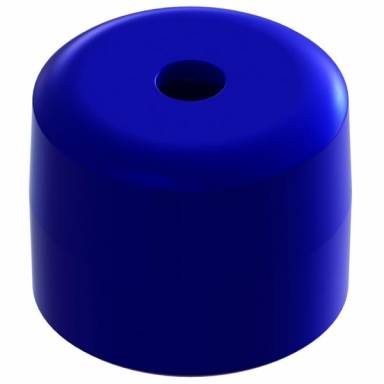

| 7 | 325157 | Spring, Rubber, 7" H x 8" Diameter | 2 | 15010 | 10K capacity |
| 7 | CH9E | Spring, Rubber, 8" H x 9-1/2" Diameter | 2 | 15002 | 20K Loadguard Spring |
| 8 | 334856 | Restrictor Can, 4-3/8"H x 9-3/8" Dia. x 1/8" Thick | 2 | 373010 | 20K capacity, w/o hole |
| 8 | 334858 | Restrictor Can, 4-3/8"H x 11-3/16" Dia. x 1/8" Thick | 2 | 373015 | 30K capacity, w/o hole |

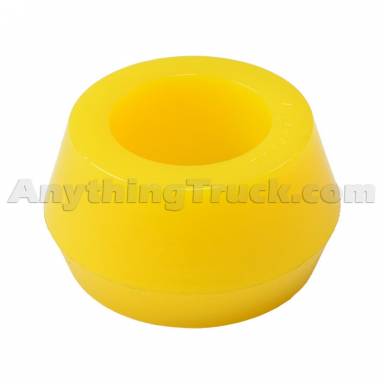

| 9 | Shock Absorber | 2 | Collapsed Length: 13.09", Extended Length: 20.50" | ||
| 10 | Special Order | Torque Rod, Rigid, 29" | 1 | 223290 | 1023 Series, 4+ Pinion |
| 10 | Special Order | Torque Rod, Adjustable | 1 | 216290 | 1023 Series, 4+ Pinion |
| 10 | Special Order | Torque Rod, Rigid, 29" | 1 | 805290 | 1030 Series, 4+ Pinion |
| 10 | Special Order | Torque Rod, Rigid, 29" | 1 | 807290 | 1030 Series, 4+ Pinion |
